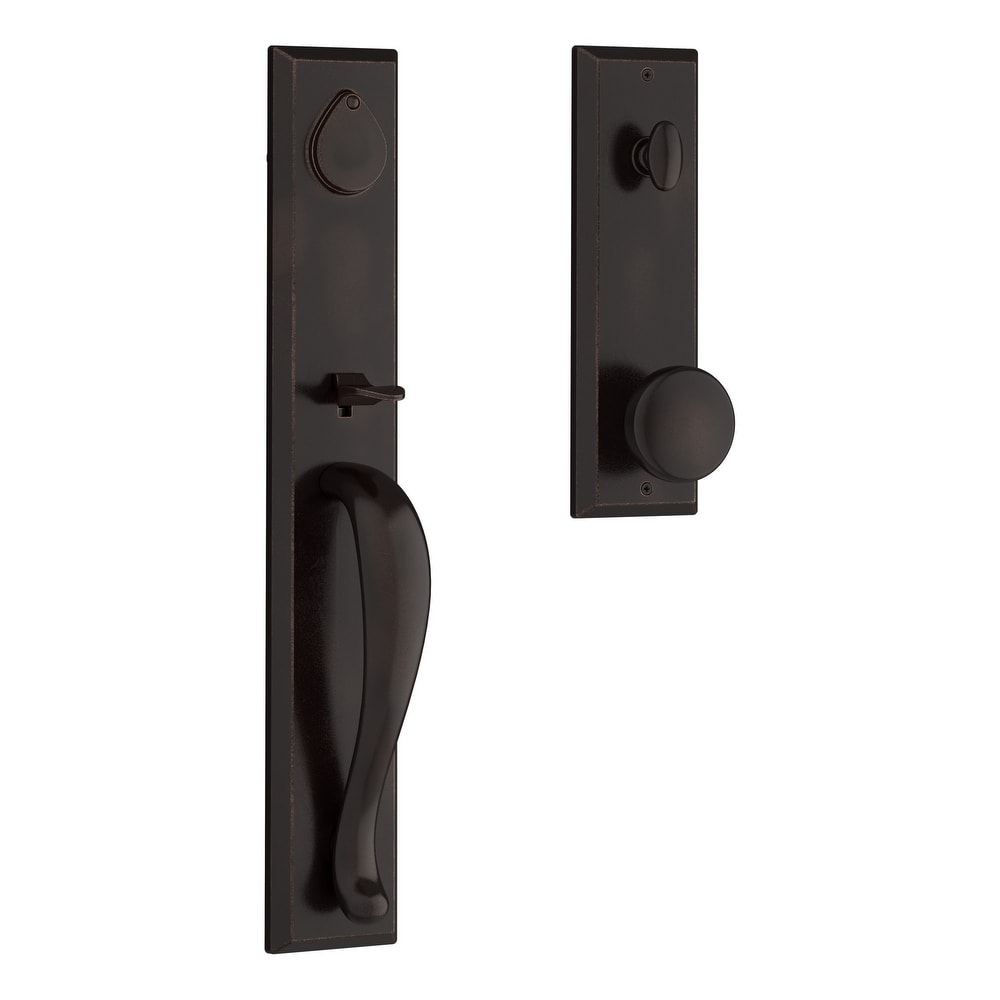

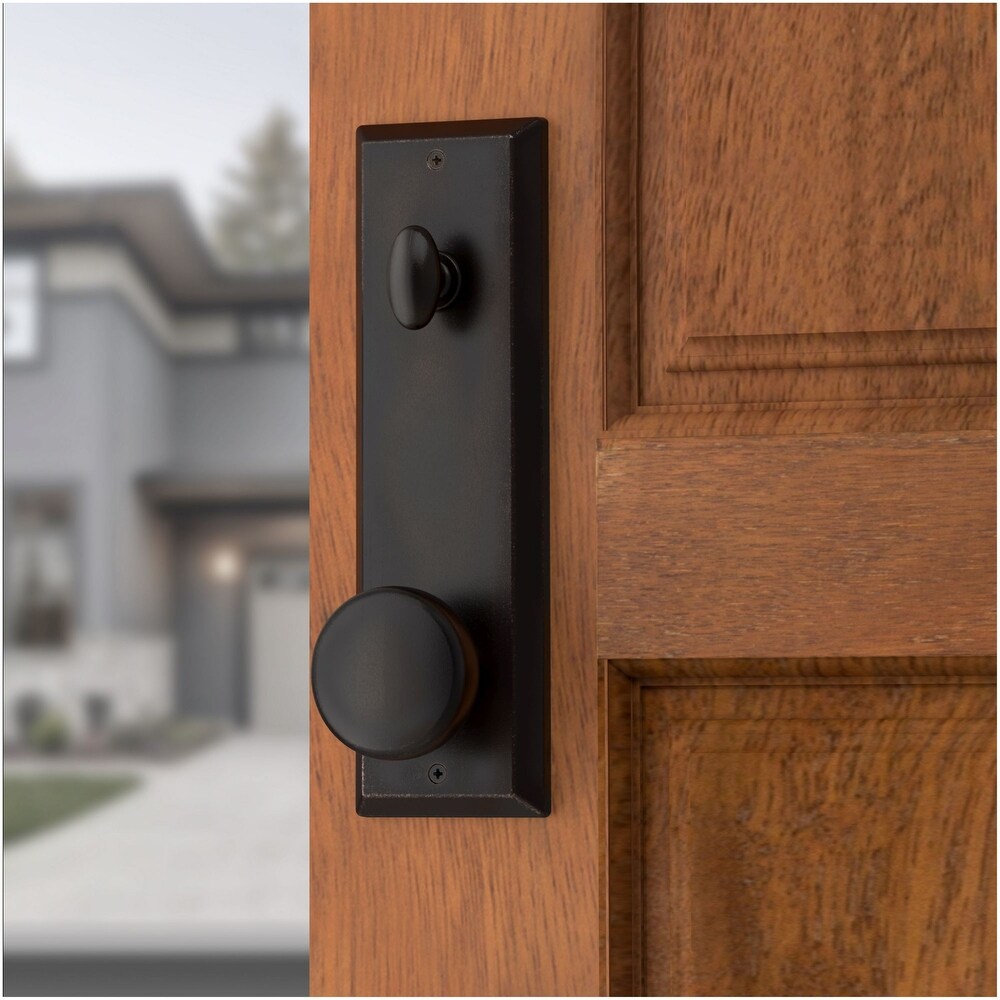

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business. Comes with Emergency Egress function which features an interconnected lock to simultaneously retract the deadbolt and door latch to quickly open your door.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and premium feel
- Accommodates door thickness 1-3/8″ to 2″; up to 2-1/2″ with purchase of a thick door kit
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 1-7/8″
- Handing: Reversible Left or Right
- Latch Faceplate: Drive-In, Round Corner, or Square Corner
- Cylinder: 5 Pin C Keyway
- Material: Brass
- Grip Center to Center: 8-3/8″
- Overall Height: 18-1/2″
- Handle Projection: 3-1/8″
- Trim Height: 18-1/2″
- Trim Width: 2-15/16″
- Interior Handle Height: 2-1/4″
- Interior Handle Width: 2-1/4″
- Interior Handle Projection: 2-1/4″
