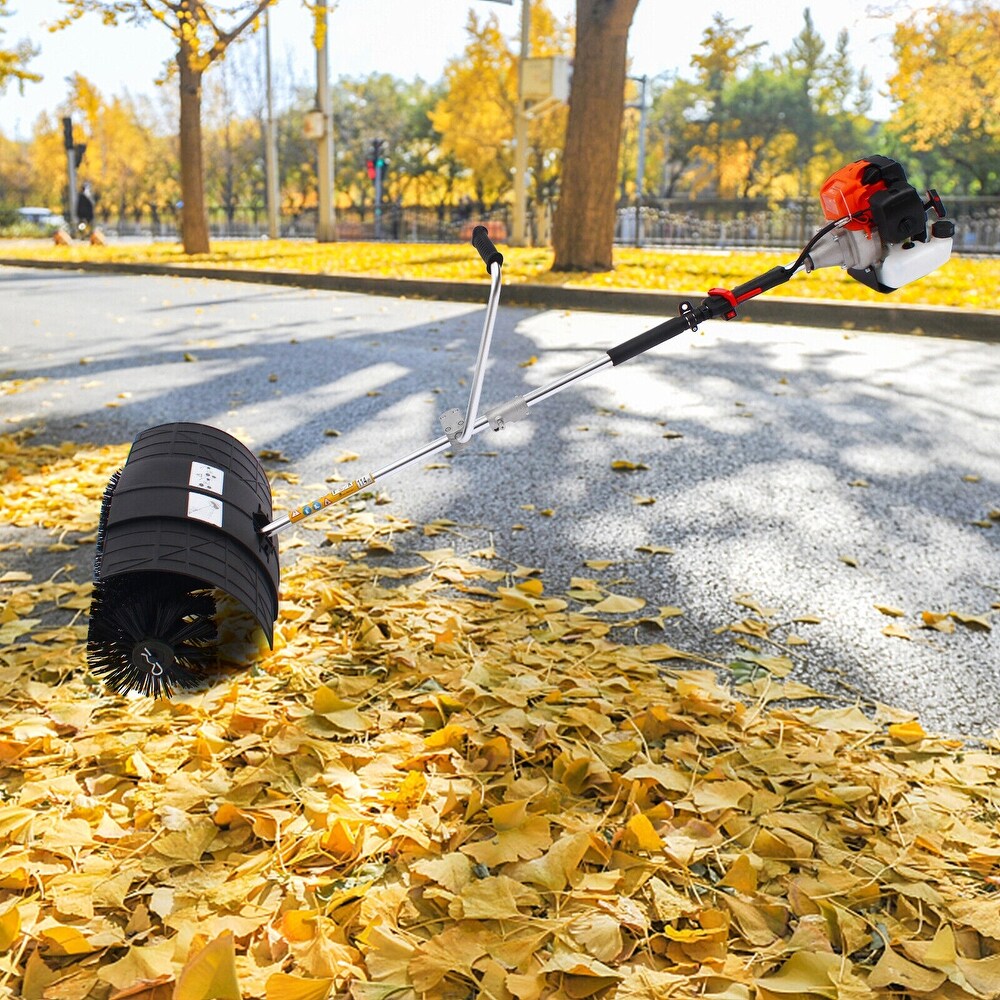

52CC Gas Power Handheld Artificial Grass Snow Clean Sweeper

Do you want to clean the outdoors more easily? Our sweeping broom has the advantages of high efficiency, low noise, and high safety. It is the best way for you to clean up the outdoors easily!

How to Use

1. Proportion gasoline and oil in the proportioning jug according to the proportioning concentration of 25:1, mix well and add to the engine fuel tank.

2. Press the pump bulb with your finger to draw fuel into the carburetor. Wait until the fuel return line returns fuel.

3. Turn the ignition off switch to the ON position, make sure the oil return pipe has returned the oil to the mailbox, and tighten the fuel tank cover.

4. Toggle the damper upward and close the damper. Hold the engine with your left hand, pull the starter puller with your right hand and pull upward quickly.

5. With the engine started, bring the damper down and open the dampers.

Specification

Model: PW580-44F5K

Color:Black

Material: Aluminum, Nylon

Power: 1.82kw/ 2.5HP

Displacement: 52cc

Power Type: Gasoline Powered Drive

Drive Horsepower: Two-stroke Gasoline Engine

Fuel Mixing Ratio: 1:25

Fuel Tank Volume: 1000ml/ 0.264gal

Rotational Speed: 10,500rpm

Working Mode: Handheld Side Hanging

Sweeping Method: Rolling Brush Sweeping

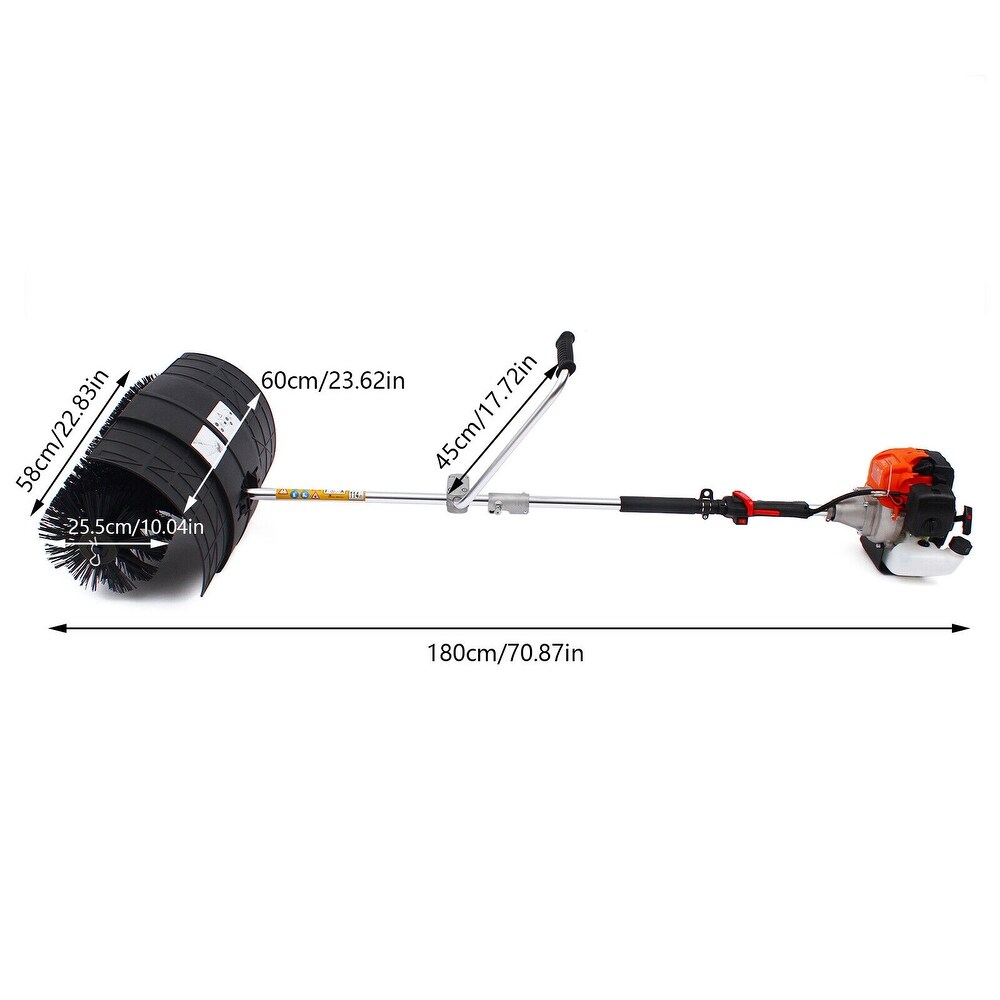

Sweeping Width: 60cm/ 23.62in

Total Length: 1.8m/ 5.9ft

Protective Cover Width: 60cm/ 23.62in

Brush Head Diameter: 25.5cm/ 10.04in

Brush Head Width: 58cm/ 22.83in

Length of Front Handle: 45cm/ 17.72in

Package Size: 107*60*35cm/ 42.13*23.62*13.78in

Net Weight: 16kg/ 35.27lbs

Gross Weight: 18kg/ 39.68lbs

Package Included

1* Sweeper Main Body

1* Protective Cover

1* Brush Head

1* Waist Protector Strap

1* Funnel

1* Goggles

1* Proportioning Pot

1* Toolkit

1* English Instruction

How to Maintain

1. After 50 operating hours, please grease the brush head gearbox once.

2. Please check the screws of each part frequently for looseness.

3. After 100 working hours, please grease the driveshaft once (especially the key teeth area at both ends).

4. Please clean the air filter sponge once after 20 working hours.

5. After 50 operating hours, please open the hood of the engine and remove the dust from the cylinders and other parts.

6. After 200 operating hours, please remove the spark plugs to clean the carbon deposits and replace them if necessary.

7. After 200 operating hours, please remove and clean the carbon in the cylinder joint, and take care that the carbon and other debris do not fall into the cylinder.

8. After 200 operating hours, please open the connecting disk, check the clutch wear, and judge whether it needs to be replaced according to the usage.

9. When you do not use it for a long time, please empty the fuel tank.

Note

Please note that this product can only use two-stroke petrol engine oil and please match the fuel ratio to the engine oil level when using it. And the fuel should be mixed when using, please do not use more than seven days of mixed fuel.
